Need some help!

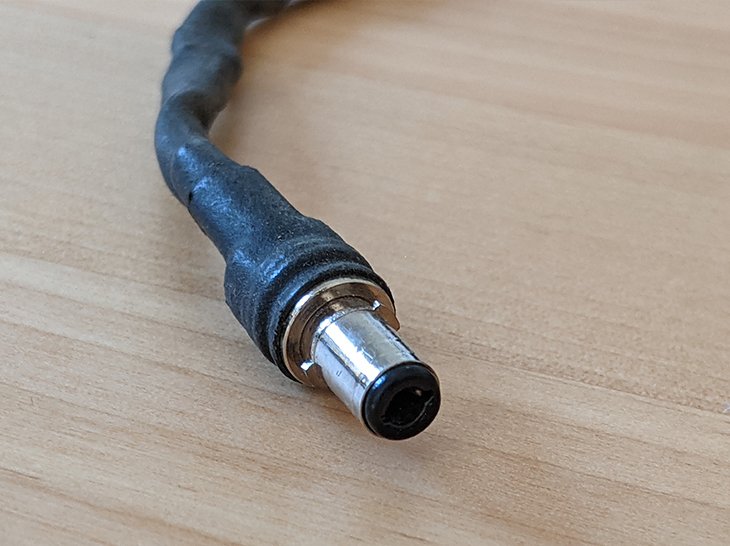

I just bought the MD-HX and need to use it on a job this weekend. I have a PRO-1 rig and I need to power the unit from the top stage. I have a 1S.303 plug already, and the DC cable that came with the unit. I'm going to solder a cable together in hope of powering the unit since I don't have enough time to get one made before the job.
Please help me make sure I'm doing this right. I drew a little map of how I'm planning on doing this.
The bottom right shows the power output on my top stage. I used a multimeter to measure it and I wrote down the result (Top pin: 16.4V, bottom left: 0/32V, bottom right: Ground).
