REM tally light 6 pin connector on MK-V J Box


Recommended Posts

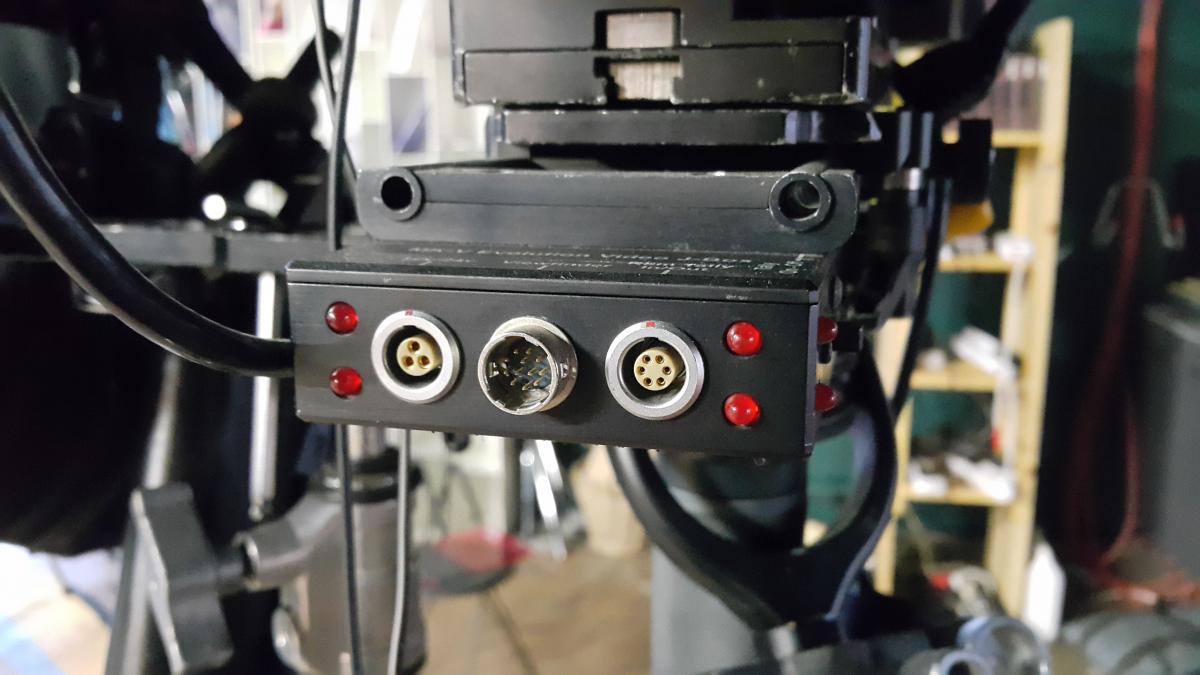

Ash, I hope you can help me out. I need the pin out info for the 6pin lemo connector that is the REM tally light on my rig. I have attached the photo for you.



I bassically want to run a photo sensor from the camera tally light into the 6pin to activate the tally light on the J box. Is this possible if I take 12v out the correct pin to the photo sensor and then back through to the correct pin on this connector?



Any advise will be appreciated.



Rupert
